HOURGLASS Bravo Thermal (2026, BNF)
- Regular price
- $5,750.00
- Sale price
- $5,750.00
- Regular price
Description

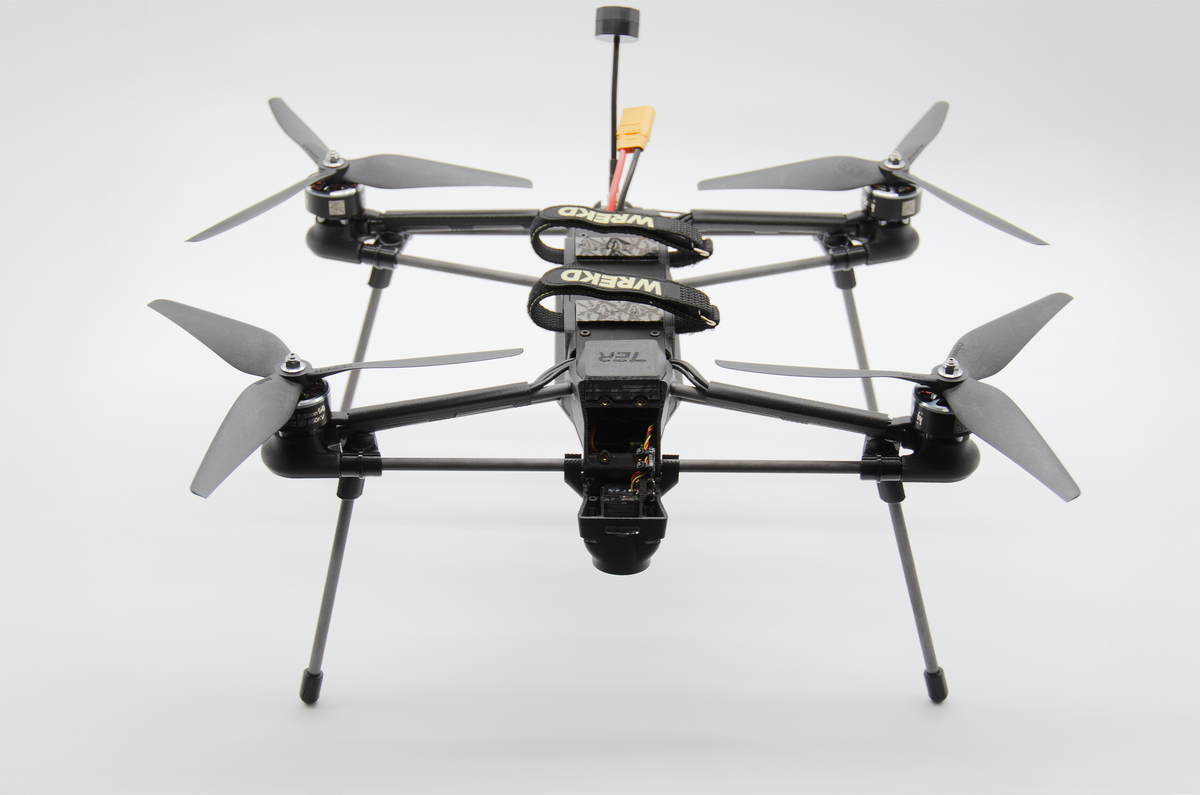

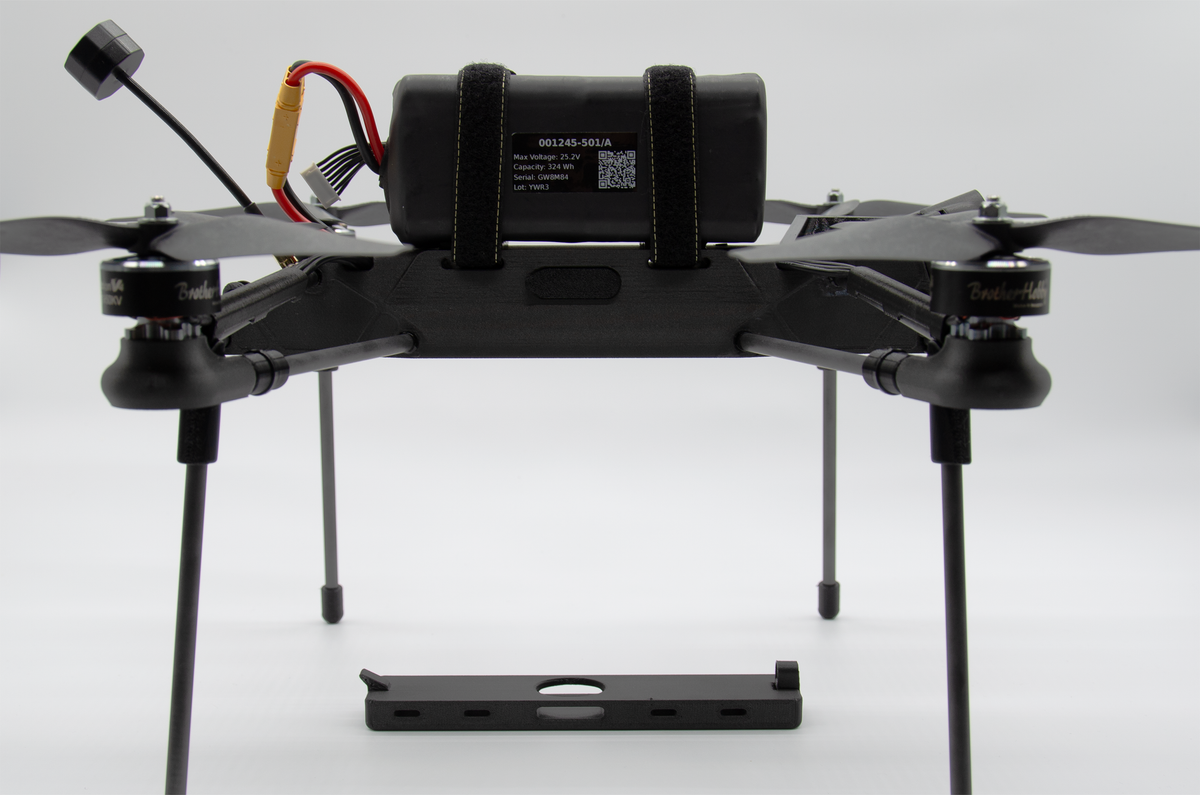

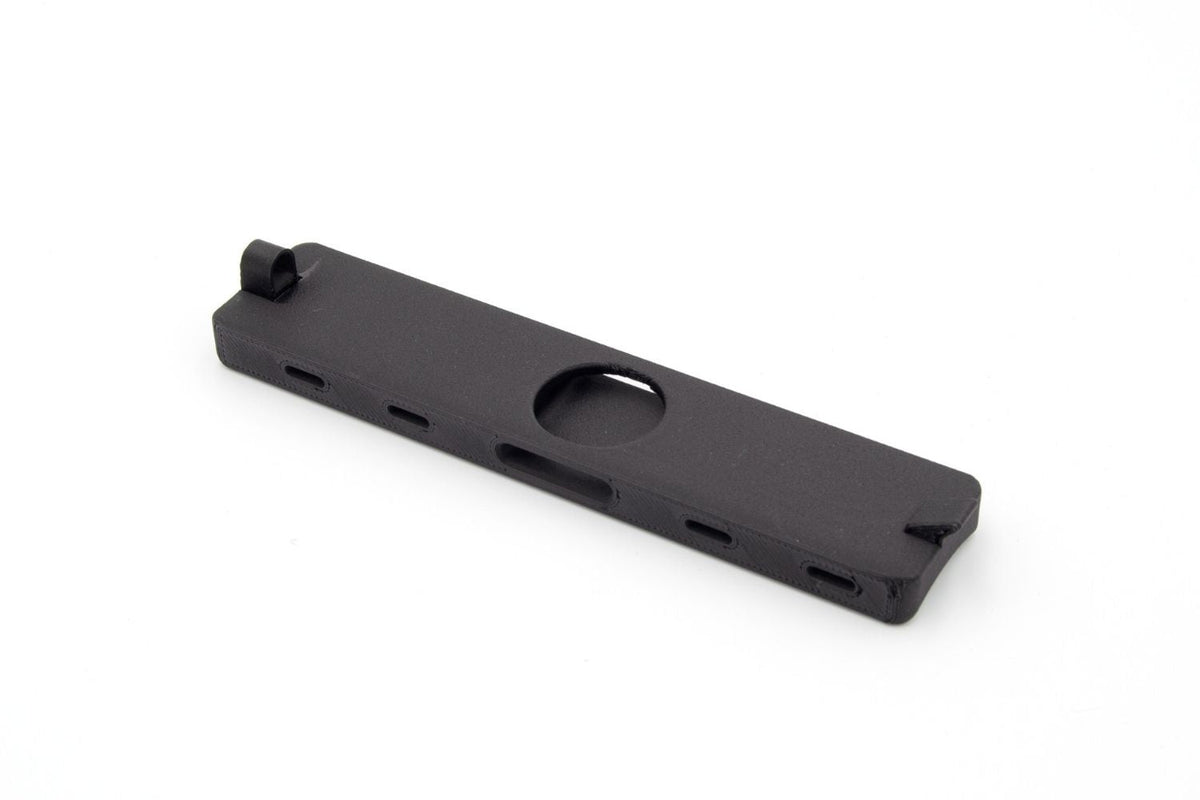

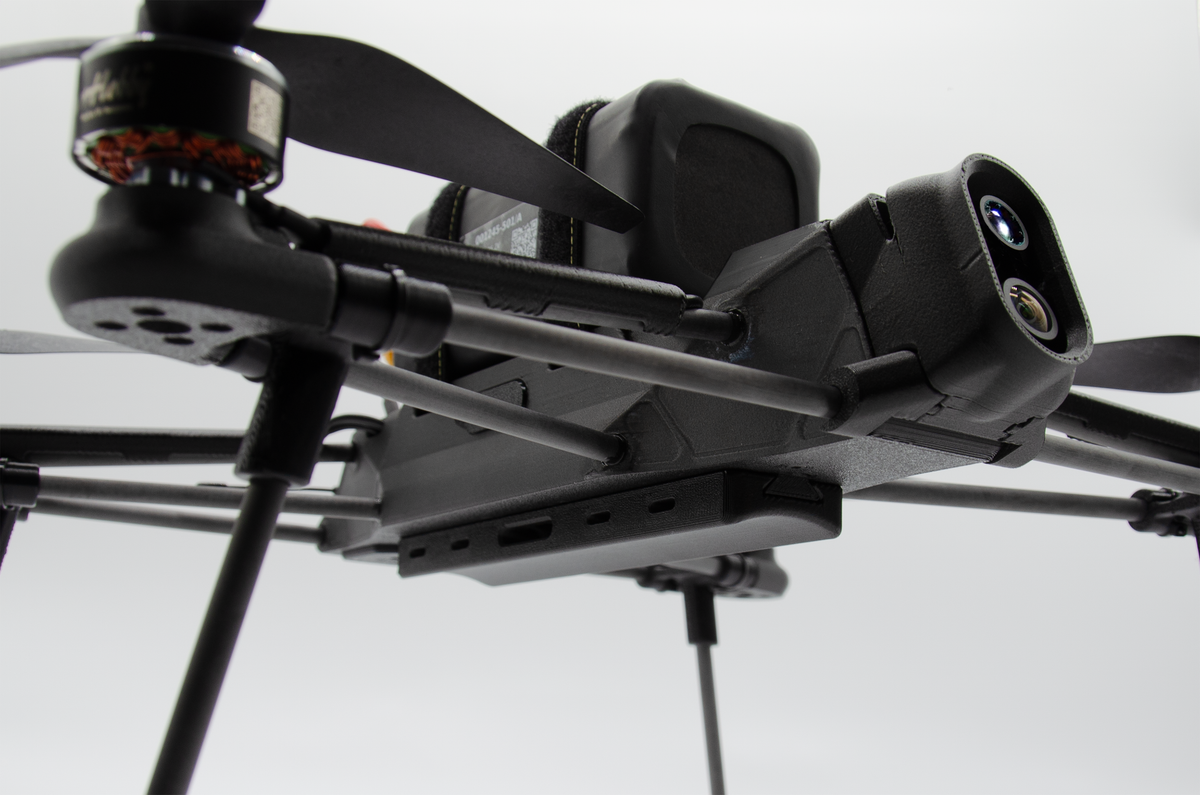

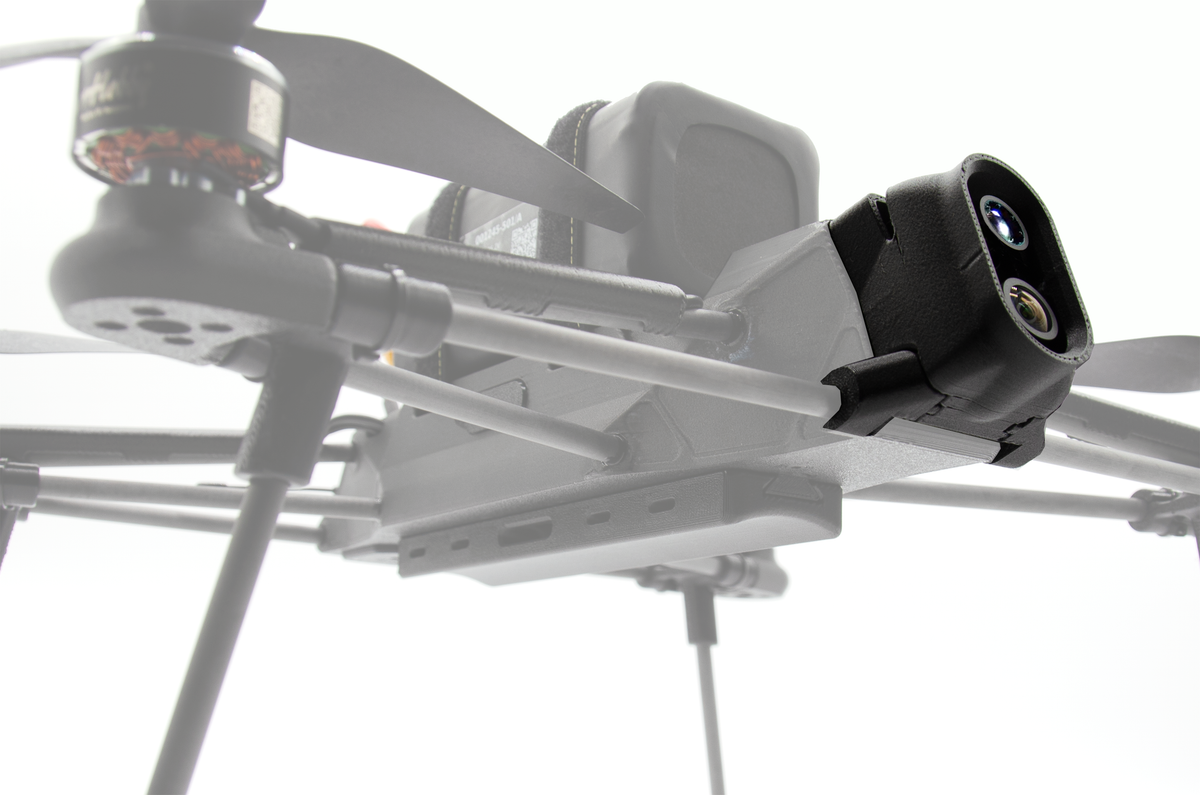

HOURGLASS-Bravo Thermal Vision NDAA is the next generation of the HOURGLASS FPV airframe (Patent Pending). With the integrated rotating camera pod, pilots have the ability to adjust their view in-flight, from the standard 20 degree angle to a 90 degree downward facing angle. Now, with a US-made thermal sensor, you can see what wasn’t visible before. In addition, a major feature upgrade is the ability to attach and release payloads to the underside of the frame. Each drone comes standard with 10” props, powerful motors, and an extremely rigid frame. Pilots can take advantage of semi-autonomous Ardupilot flight modes with Stabilize, Loiter (Position Hold), and Return to Home. Ardupilot also allows for pilots to plan GPS waypoint missions using Mission Planner.
- Price$5,750
-
Lead timeDue to supply limitations
12-16 weeks - Bulk or agency orderssales@constellationresponse.com
Included Components
- High Temperature Resistant PET-CF 3D printed frame with a Patent Pending innovative carbon fiber tube arm design
- ESC: 4in1 60A (80A peak) with 5V Cooling Fan
- FC: NDAA compliant, running Ardupilot Firmware
- Camera 1: NDAA Analog FPV Camera
- Camera 2: NDAA US-Made 640x480 Thermal Sensor
- Motors: 32.5-12 950KV
- Props: 10” Triblade
- Analog Video system: 25-1000mW+ 5.8GHz VTX
- Receiver: Crossfire Nano RX Pro
- GPS: ARK Electronics SAM GPS
- XT90 Connectors
- GoPro Mount (GoPro Camera not included)
Note: Some components may be substituted with an equivalent based on availability
Flight Times & Payloads
HOURGLASS 10″ FPV Platform
Hover a battery to highlight it. Click to keep it highlighted.
Tap a battery to highlight it. Tap again to clear.
View as table
| Battery | 0 lb | 2.5 lb | 5 lb |
|---|---|---|---|
|
15000 mAh 6S3P · 22.2V · Li-ion |
38 min | 24 min | 18 min |
|
9000 mAh 6S · 22.2V · LiPo |
25.5 min | 14.5 min | 10.5 min |
|
7200 mAh 6S · 22.2V · LiPo |
22.5 min | 12 min | 9 min |
|
5500 mAh 6S · 22.2V · LiPo |
21 min | 10.5 min | 7 min |
Test conditions: calculated at 4.2V to 3.5V landing voltage (3.1V for Li-ion).
Watch HOURGLASS in action
Ride along as HOURGLASS navigates lakes, parks, and trees.
Shipping & Lead Time
Due to supply limitations, 12-16 weeks lead time.
Warranty & Repair
Read about our Warranty & Repair
Remote ID Notice
This drone does not include built-in Standard Remote ID. It's the operator's responsibility to ensure compliance — either by flying exclusively within a FAA-Recognized Identification Areas (FRIAs) , or by installing a Remote ID module before flight.
Learn more:
- FAA Remote ID overview: https://www.faa.gov/uas/getting_started/remote_id
- FAA-Recognized Identification Areas (FRIA): https://www.faa.gov/sites/faa.gov/files/uas/getting_started/remote_id/industry/Remote_ID_FRIA.pdf
- FPV Freedom Coalition rule summary: https://fpvfc.org/remote-id-final-rule-summary
HAM Radio License Notice
This product's video transmitter operates on frequencies that require an FCC Amateur ("HAM") Radio license to use legally in the United States.
It's the operator's responsibility to ensure compliance with FCC regulations before use.
TER Drones LLC is not responsible for use of this product in violation of FCC regulations. By completing checkout and agreeing to our Terms and Conditions, you confirm that you have read and understood this notice.
