Hourglass FPV Drone (BNF) (PATENT PENDING)

Before purchasing a drone, you will be required to accept this drone purchase agreement at checkout.

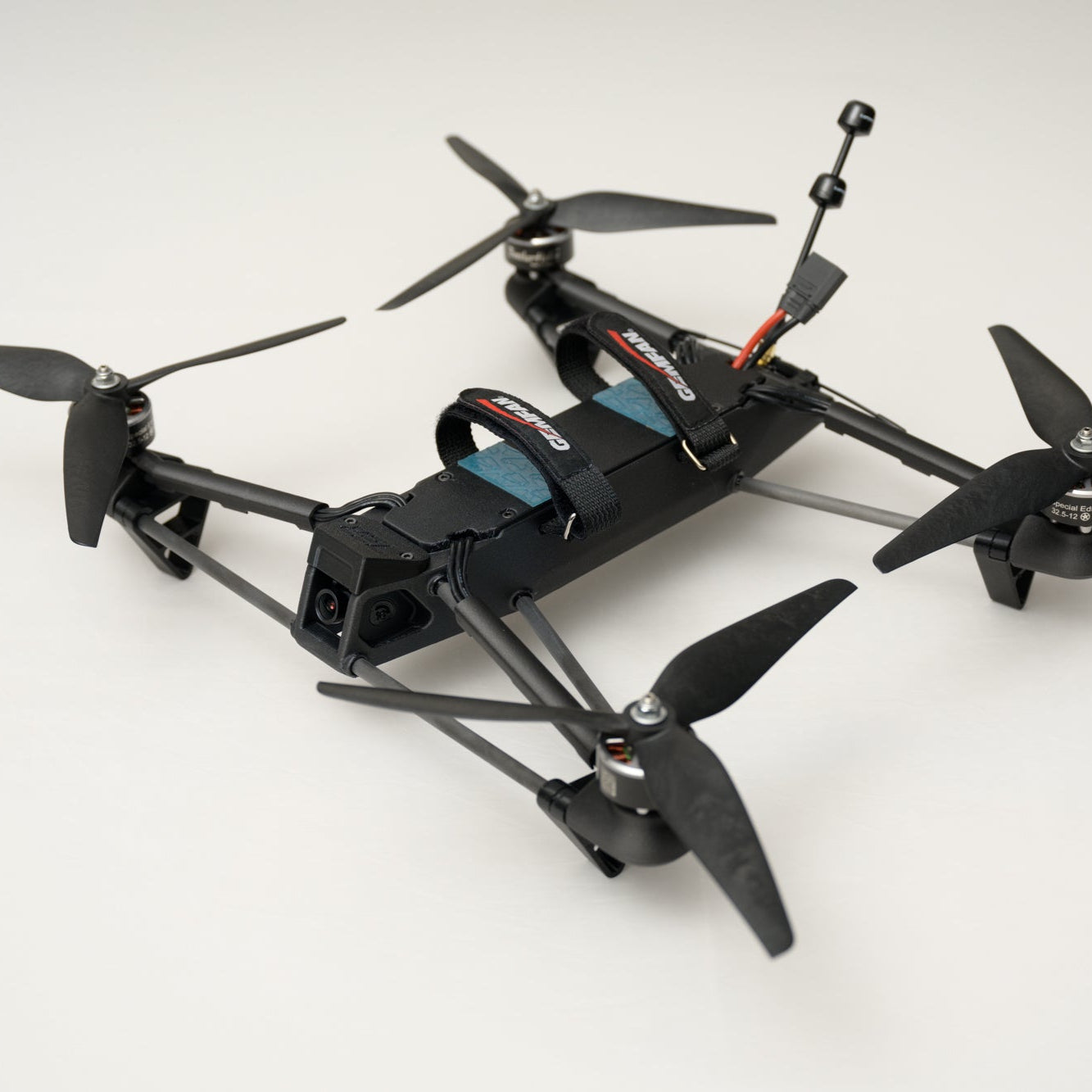

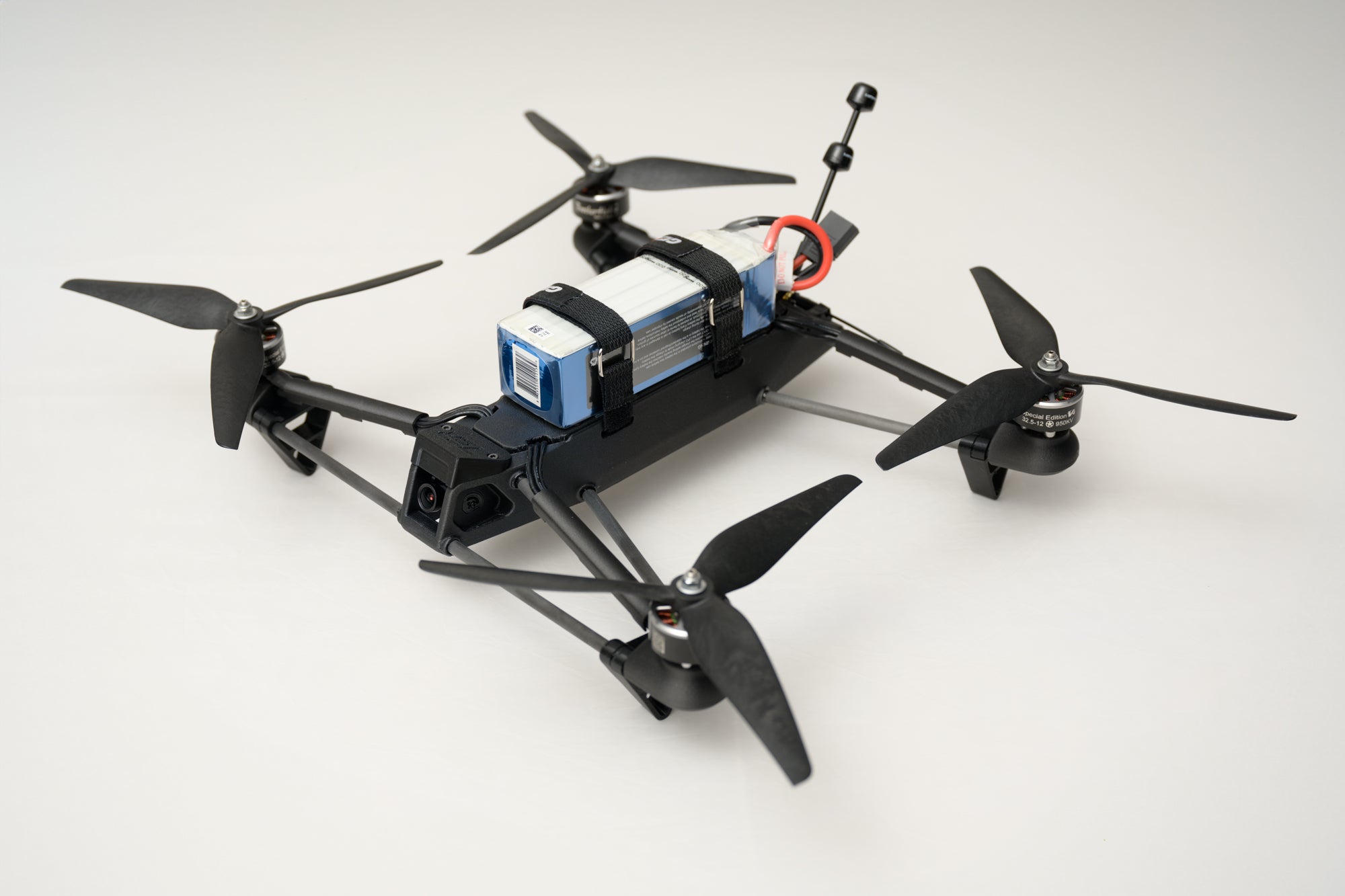

The Hourglass FPV Drone (Patent Pending) is a purpose-built quadcopter designed for tactical users, first responders, and civilian enthusiasts who demand reliability and performance. Outfitted with 10-inch props, powerful motors, and a carbon-fiber reinforced polymer frame, this drone is equally suited for scouting, reconnaissance, and deploying aerial radio repeaters. Leveraging INAV firmware, it features Position Hold and Return to Home functionality, offering semi-autonomous control when precision matters most. For those who prefer full manual control, ACRO mode unlocks the drone’s full freestyle potential—because while mission readiness is the priority, having fun is always a bonus.

Manufactured by 2nd Order Effects (2OE), the Hourglass FPV comes from a company that trains American soldiers to build and fly FPV drones. Now available to the civilian market, this drone is engineered for serious applications while maintaining a build quality typically reserved for military-grade systems. Every unit is assembled in America, using high-temperature-resistant PET-CF 3D printing and an innovative carbon fiber tube arm design for superior rigidity and weight efficiency.

Whether you're monitoring a disaster zone, extending off-grid communications, or honing your piloting skills, the Hourglass FPV is built to perform when it matters.

Why We Love It:

• Designed and built in America—Made for soldiers, now available to civilians.

• Semi-autonomous flight modes—Position Hold and Return to Home provide enhanced mission capabilities.

• Versatile payload capacity—suitable for carrying radio repeaters and other lightweight mission-essential gear.

• Extreme durability—rigid carbon fiber and PET-CF 3D-printed frame withstand harsh environments.

• Freestyle-ready—ACRO mode allows for full manual control for experienced pilots.

Included Components:

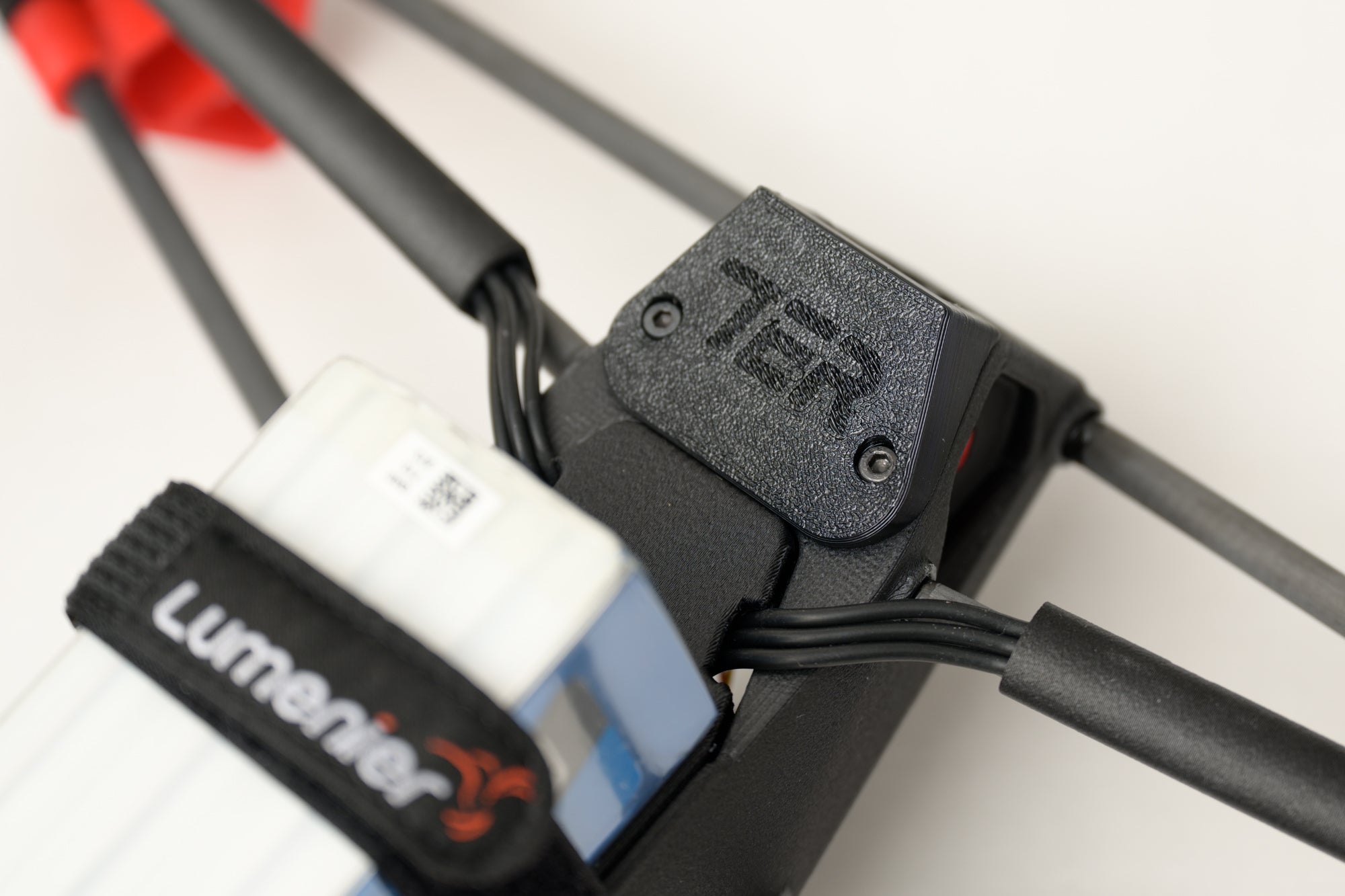

• High Temperature Resistant PET-CF 3D printed frame with a Patent Pending innovative carbon fiber tube arm design

• ESC: 4in1 65A with 5V Cooling Fan

• FC: NDAA approved, running INAV Firmware

• Motors: 32.5-12 950KV

• Props: 10" Triblade

• Analog Video system: 25-1000mW+ 5.8GHz VTX

• Receiver: Crossfire Diversity Nano Rx / ELRS 915 / ELRS 2.4

• GPS: M10Q-5883

• XT90 Connectors

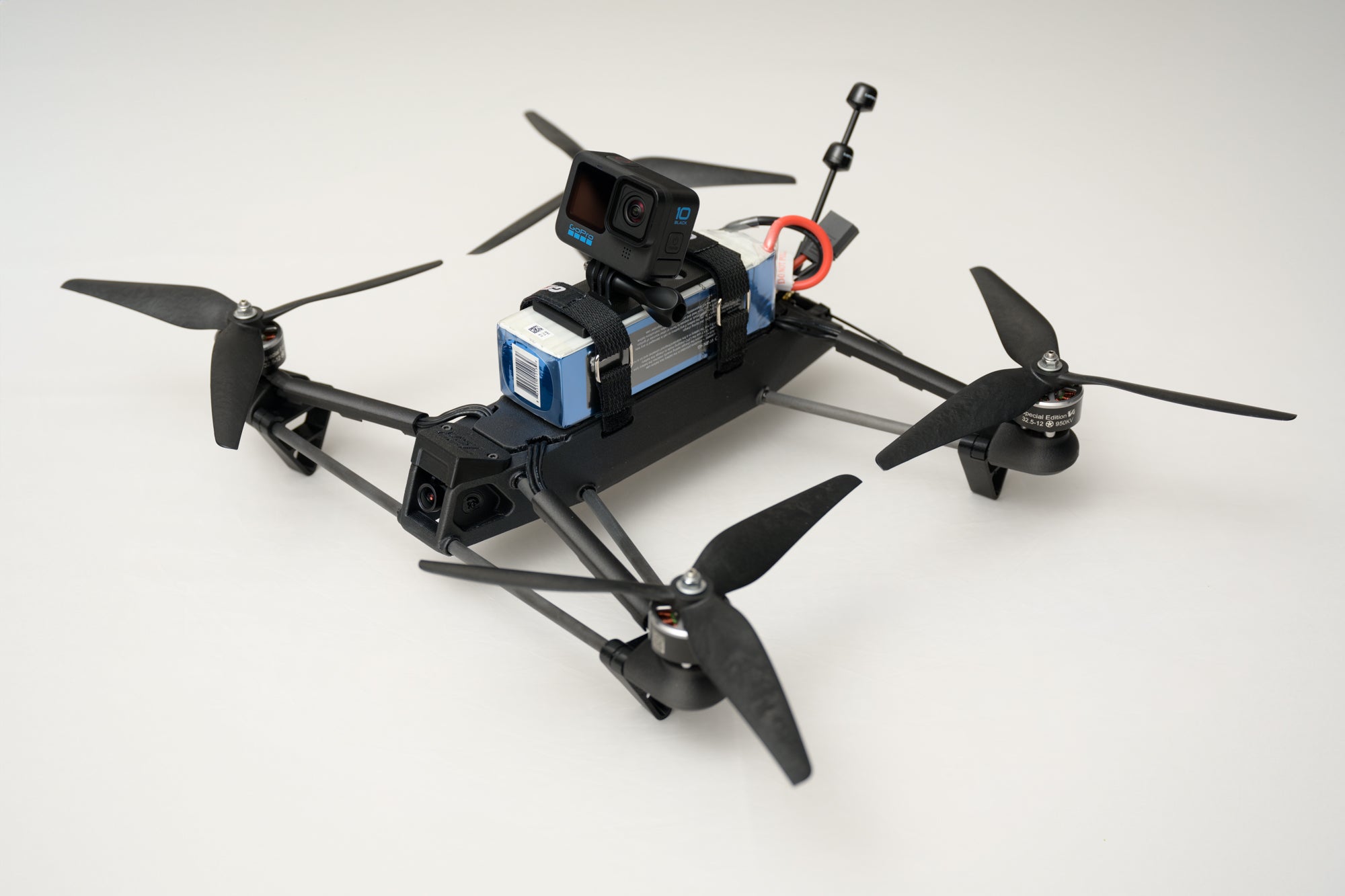

• GoPro Mount (GoPro Camera not included)

Note: Some components may be substituted with an equivalent based on availability.

Specifications:

• Length (w/o Props): 12.20in

• Length (w/ Props): 20.59in

• Width (w/o Props): 15.40in

• Width (w/ Props): 23.78in

• Height: 3.78in

• Dry Weight: 2.48 lbs

• AUW (W/Battery): 4.16 lbs

• This configuration does not include payload drop functionality

Recommended Accessories (Not Included):

• Li-Po : 6s 5200/5500mAh 120c

• RadioMaster Zorro or RadioMaster Pocket

• ORQA FPV.One Goggles

• Fatshark HDO+ with Receiver

HOURGLASS-FPV BNF includes a complete drone build, tuned for optimal flight and tested for quality.

These drones are made-to-order. Production lead time + shipping usually around 6 weeks.

Please contact us for more info or updated delivery/production lead time information.

FAA Compliance: You are solely responsible for ensuring compliance with all applicable Federal Aviation Administration (FAA) regulations, including but not limited to FAA Part 107. This includes obtaining any necessary certifications, registering your drone, and operating within the permitted guidelines. 2nd Order Effects, LLC makes no representations or warranties regarding your compliance with FAA regulations and it remains your sole responsibility to ensure that the drone meets FAA requirements at all times.

Before purchasing a drone, you will be required to accept this drone purchase agreement at checkout.
